| Brand | Cisco |
|---|---|
| Model | C9500-24Y4C-E |
| Products Status | New |
| Switching capacity | Up to 2.0Tbps |
| Dimensions | 1.73" x 17.5" x 18.0" |
| Flash | 16GB |
| Form Factor | 1U Rackmount |
| Storage temperature | -4 to 149F (-20 to 65C) |
| Operating temperature | 32 to 104F (0 to 40C) |
| VLAN IDs | 4000 |
| DRAM | 16GB |
| Forwarding rate | Up to 1 Bpps |
| Jumbo frame | 9216 bytes |
| Input voltage | 90 to 264 VAC |
| Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 212,000"direct + direct, Up to 90,000 host/ARP |
| Total number of IPv6 routes | Up to 212,000"direct + direct, Up to 90,000 host |
| QoS ACL scale | Up to 16000 |
| Security ACL scale | Up to 27000 |

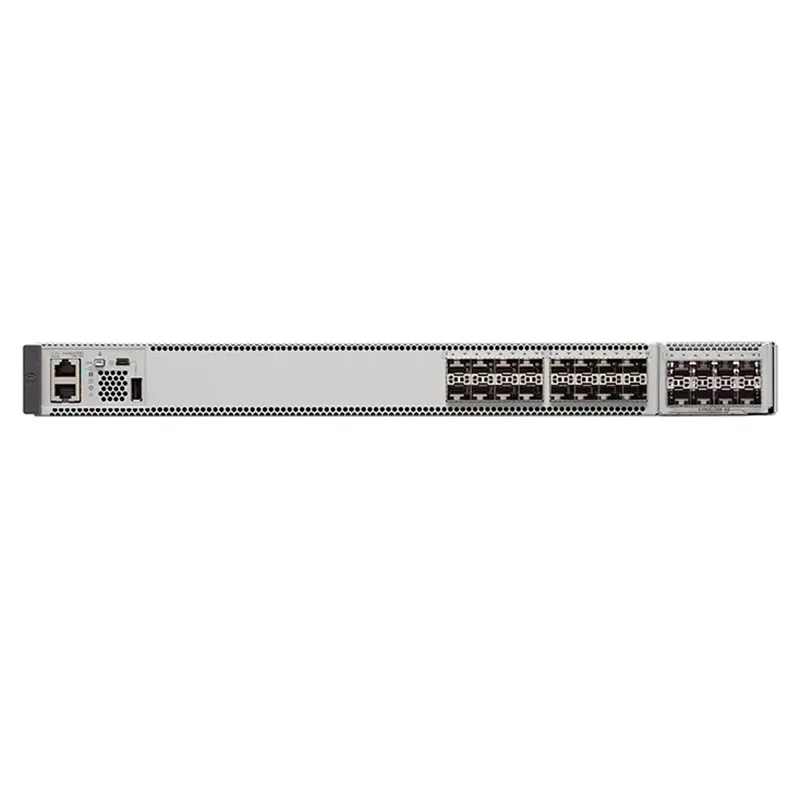

C9500-24Y4C-E Catalyst 9500 Series 24-Port 3 Layer Switch
The Cisco C9500-24Y4C-E is a high-performance, 24-port 3-layer switch designed for enterprise networks. Key features include 24 x 1/10/25-Gbps SFP28 ports and 4 x 40/100-Gbps QSFP28 ports, offering flexible connectivity options. It provides advanced security, scalability, and high availability, with features like Cisco StackWise technology and modular design. Benefits include improved network agility, enhanced security, and simplified management. Unique selling points include its high-speed ports, modular uplinks, and support for advanced network services, making it ideal for demanding enterprise environments.
$Quote1 Piece (MOQ)
| Brand： | Cisco |
|---|---|
| Model： | C9500-24Y4C-E |
| Products Status： | New |
| Switching capacity： | Up to 2.0Tbps |
| Dimensions： | 1.73" x 17.5" x 18.0" |
