| Memory Types | DDR4-2666 |
|---|---|
| # of Displays Supported | 3 |
| Code Name | Coffee Lake |
| Max # of Memory Channels | 2 |
| TDP | 71 W |
| Hyper-Threading Support | No |
| T JUNCTION | 100 |
| Model | CM8068404173806 |
| Total Threads | 4 |
| Manufacturing Tech | 14 nm |
| PCI Express Revision | 3 |
| Shipping Media | TRAY |
| Max CPU Configuration | 1 |
| PCI Express Configurations | 1×16, 1×8+2×4, 2×8 |
| Bus Speed | 8 GT/s |
| ECC Memory Supported | Yes |
| Brand | Intel |
| 4K Support | at 60Hz, Yes |
| Intel Quick Sync Video | Yes |
| Embedded Options Available | No |
| Processor Base Frequency | 3.50 GHz |
| Scalability | 1S Only |
| Max Turbo Frequency | 4.70 GHz |
| 64-Bit Support | Yes |
| Series | Intel Xeon E |
| Package Size | 37.5 mm x 37.5 mm |
| DirectX* Support | 12 |
| Max # of PCI Express Lanes | 16 |
| Graphics Max Dynamic Frequency | 1.20 GHz |
| CPU Socket Type | FCLGA1151 |
| Application | Server |
| Graphics Base Frequency | 350 MHz |
| Cache | 8 MB |
| Part Number | E-2224G |
| Total Cores | 4 |
| Max Memory Size | 128 GB |
| Products Status | New |
| Instruction Set | 64-bit |
| Clear Video HD Technology | Yes |
| OpenGL* Support | 4.5 |
| Device ID | 0x3E96 |

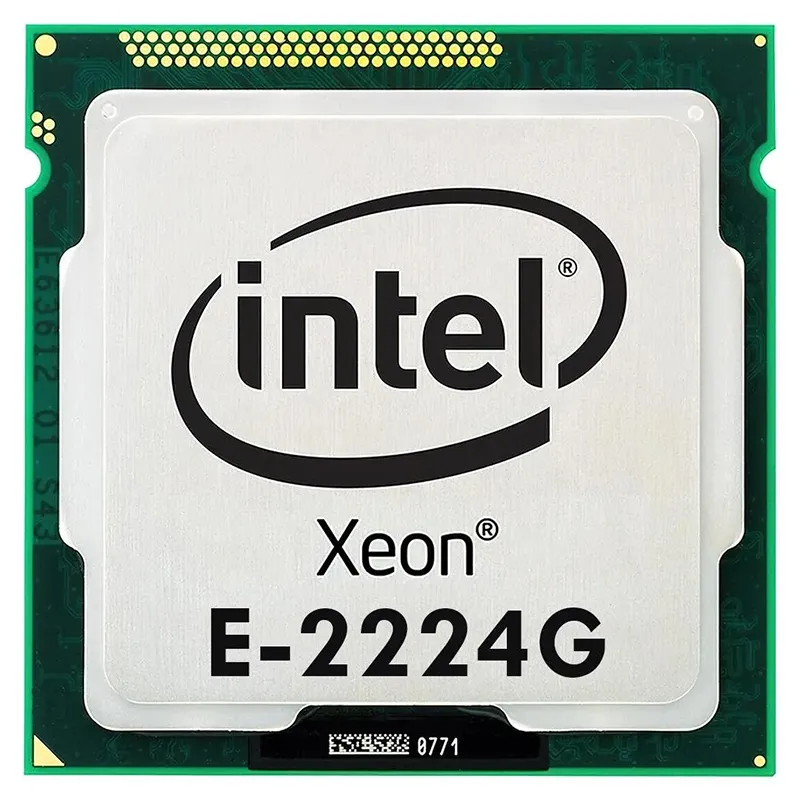

Intel Xeon E-2224G 4C 4T Socket FCLGA1151 71W
The Intel Xeon E-2224G is a 9th Gen Xeon processor featuring 4 cores and 4 threads, with a socket type of FCLGA1151 and a TDP of 71W. Key features include high-performance processing, integrated Intel UHD Graphics P630, and support for up to 128GB DDR4 memory. Benefits include enhanced productivity, improved graphics performance, and reliable operation for entry-level servers and workstations. Unique selling points are its balance of performance and power efficiency, making it suitable for businesses seeking to upgrade their infrastructure without excessive power consumption.
$Quote
| Memory Types๏ผ | DDR4-2666 |
|---|---|
| # of Displays Supported๏ผ | 3 |
| Code Name๏ผ | Coffee Lake |
| Max # of Memory Channels๏ผ | 2 |
| TDP๏ผ | 71 W |
