| Products Status | New |
|---|---|
| Form Factor | 2U Rackmount |
| Application | Server |
| Interface | NVMe (Optional), SAS (Optional), SATA (Optional) |
| Drive Form Factors | 3.5"/2.5" |
| Chipset | System on Chip |
| Generation | H13 |
| CPU | Dual processor(s)AMD EPYC 9004/9005 Series Processors |
| Total PCI-E Slots | 8 |
| CPU Type | AMD EPYC 9004/9005 Series Processors |
| Drives | 12 |
| Max GPU | 2 |
| Model | AS -2025HS-TNR |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Depth | 31.6" (803 mm) |
| Height | 3.5" (88.9 mm) |
| Width | 17.2" (437 mm) |
| Package | 10.4" (H) x 23.8" (W) x 43.6" (D) |
| PCI-Express (PCIe) Configuration | DefaultOption A*Option B*Option C*Option D*Option E*Option F*Option G*Option H*Option I*(*Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options |
| Weight | Gross Weight: 69 lbs (31.3 kg)Net Weight: 39 lbs (17.7 kg) |
| Drive Bays Configuration | Default: Total 12 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| Video | 1 VGA port |
| Network Connectivity | Via AIOMView AIOM OptionsView AOC Options |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) |
| LED | HDD activityLAN1 activityPower statusSystem information |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 2 USB 3.0 ports(rear) |
| Core Count | Up to 320C/640T |
| Max GPU Count | Up to 2 double-width or 2 single-width GPUs |
| Memory Voltage | 1.1V |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Supported GPU | RTX 4000, RTX 6000 Ada Generation, RTX A2000, A100View GPU Options, A16, A40, L4, L40, L40S, NVIDIA PCIe: H100, RTX A5000, RTX A6000 |
| GPU-GPU Interconnect | PCIe |
| Air Shroud | 2 Air Shrouds |
| BIOS Features | ACPI 6.4Plug and Play (PnP)SMBIOS 3.5 or laterUEFI 2.8USB Keyboard support |

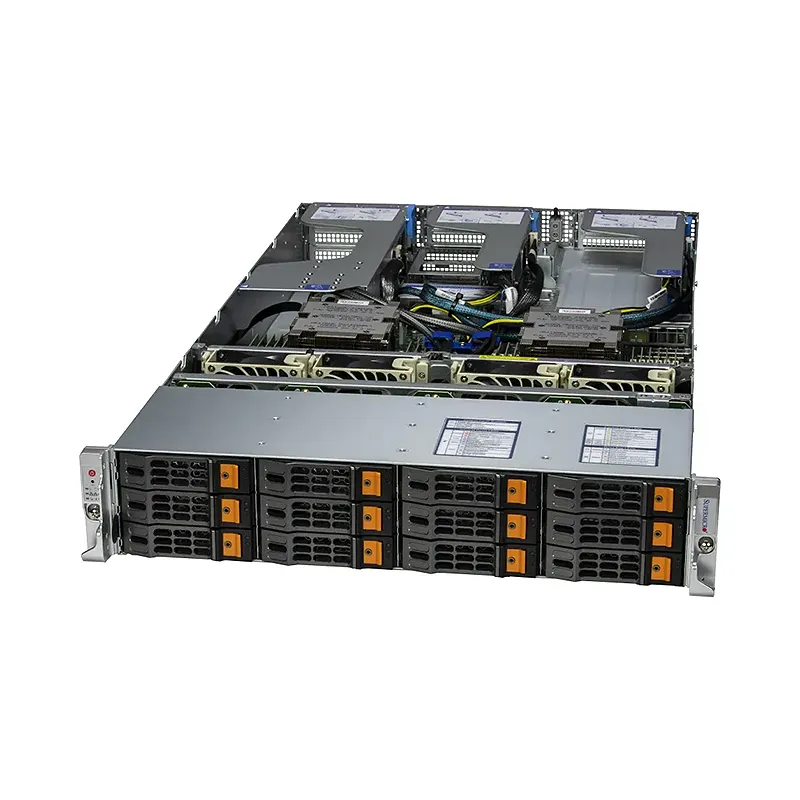

Hyper A+ Server AS -2025HS-TNR (Complete System Only
The Hyper A Server AS-2025HS-TNR is a high-performance, complete server system designed for demanding workloads. Key features include dual AMD EPYC 9004 series processors, support for up to 4TB DDR5 memory, and multiple storage options. Benefits include enhanced computing power, improved data processing, and increased scalability. Unique selling points are its optimized performance for cloud, HPC, and AI applications, along with robust security features and comprehensive management tools.
$Quote1 Piece (MOQ)
| Products Status： | New |
|---|---|
| Form Factor： | 2U Rackmount |
| Application： | Server |
| Interface： | NVMe (Optional), SAS (Optional), SATA (Optional) |
| Drive Form Factors： | 3.5"/2.5" |
