| Brand | Supermicro |
|---|---|
| Products Status | New |
| Applications | AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Software-defined Storage, Virtualization |
| Max GPU | 2 |
| CPU Type | 5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors |
| Total PCI-E Slots | 8 |
| Drives | 24 |
| Drive Form Factors | 2.5" |
| Form Factor | 2U |
| Generation | X13 |
| Interface | NVMe (Optional), SAS (Optional), SATA (Optional) |
| SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |
| LED | HDD activityLAN1 activityPowerSystem information |
| Max GPU Count | Up to 2 double-width or 3 single-width GPUs |
| Supported GPU | NVIDIA PCIe: RTX A2000, A100View GPU Options, L40S |
| Air Shroud | 2 Air Shrouds |
| Network Connectivity | Via AIOMView AIOM OptionsView AOC Options |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| BIOS Type | AMI 64MB SPI Flash |
| Package | 10.4" (H) x 23.8" (W) x 43.6" (D) |
| Liquid Cooling | Direct to Chip (D2C) Cold Plate (optional) |
| Depth | 29.9" (760 mm) |
| Fans | 4x 8cm heavy duty fans with optimal fan speed control |
| Height | 3.5" (88.9 mm) |
| Buttons | Power On/OffUID button |
| M.2 | 2 M.2 NVMe/SATA slots (M-key 2280/22110) |
| Memory | Slot Count: 32 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMMax Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMMView Memory Options |
| Width | 17.2" (437 mm) |
| Video | 1 VGA port |
| Core Count | Up to 64C/128T; Up to 320MB Cache per CPU |
| NVMe | NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)View NVMe Options |
| Note | Supports up to 350W TDP CPUs (Air Cooled)Supports up to 350W TDP CPUs (Liquid Cooled) |
| Weight | Gross Weight: 66 lbs (30 kg)Net Weight: 40 lbs (18.2 kg) |
| Drive Bays Configuration | Default: Total 24 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| USB | 2 USB 2.0 ports(rear)2 USB 3.0 ports(Header) |
| PCI-Express (PCIe) Configuration | Option A*Option B*(*Requires additional parts, please refer to the system callout images above.), please see the optional parts list for details. For more details on PCIe slot configuration options |
| CPU | Dual Socket E (LGA-4677)5th Gen Intel XeonSupports Intel Xeon CPU Max Series with high bandwidth memory (HBM) |
| Chipset | Intel C741 |
| Memory Voltage | 1.1V |

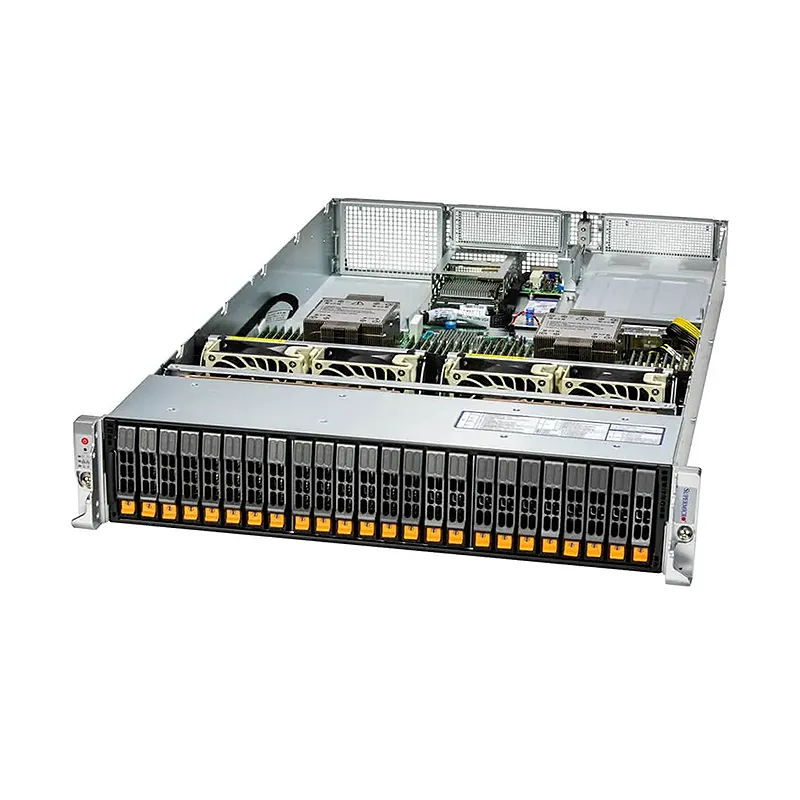

Hyper SuperServer SYS-221H-TN24R
The Hyper SuperServer SYS-221H-TN24R is a high-density storage server designed for demanding data center workloads. Key features include support for up to 24 NVMe drives, dual socket P+ support for 3rd Gen AMD EPYC processors, and a compact 2U form factor. Benefits include high storage density, low latency, and increased processing power. Unique selling points include its ability to handle high-performance computing, AI, and data analytics workloads, making it ideal for organizations requiring high-density storage and processing capabilities.
$Quote
| Brand： | Supermicro |
|---|---|
| Products Status： | New |
| Applications： | AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Software-defined Storage, Virtualization |
| Max GPU： | 2 |
| CPU Type： | 5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors |
