| Memory Types | DDR4 1600/1866/2133/2400 |
|---|---|
| Code Name | Broadwell |
| Max # of Memory Channels | 4 |
| TDP | 120 W |
| Hyper-Threading Support | Yes |
| Model | CM8066002023604 |
| Total Threads | 32 |
| Physical Address Extensions | 46-bit |
| Manufacturing Tech | 14 nm |
| PCI Express Revision | 3 |
| Max CPU Configuration | 2 |
| PCI Express Configurations | x16, x4, x8 |
| Bus Speed | 9.6 GT/s |
| ECC Memory Supported | Yes |
| Brand | Intel |
| Embedded Options Available | No |
| Processor Base Frequency | 2.10 GHz |
| Scalability | 2S |
| Max Turbo Frequency | 3.00 GHz |
| 64-Bit Support | Yes |
| Series | Intel Xeon E5 v4 |
| Package Size | 45mm x 52.5mm |
| Max # of PCI Express Lanes | 40 |
| Max Memory Bandwidth | 76.8 GB/s |
| CPU Socket Type | FCLGA2011 |
| Application | Server |
| Cache | 40 MB |
| Part Number | E5-2683V4 |
| Total Cores | 16 |
| Max Memory Size | 1.5 TB |
| Products Status | New |
| Instruction Set | 64-bit |

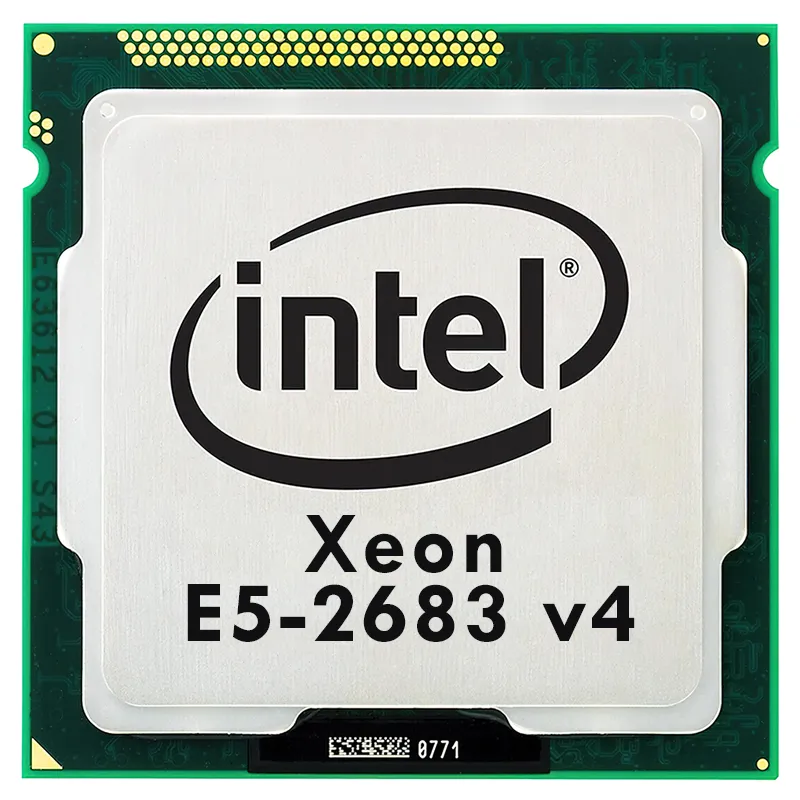

Intel Xeon E5-2683 v4 Broadwell-EP 2.1 GHz 16 x 256KB L2 Cache 40MB L3 Cache LGA 2011-3 120W BX80660E52683V4 Server Processor
The Intel Xeon E5-2683 v4 is a high-performance server processor featuring 16 cores and 32 threads, with a base clock speed of 2.1 GHz. Key features include 16 x 256KB L2 cache and 40MB L3 cache, supporting demanding workloads. With a 120W TDP and LGA 2011-3 socket compatibility, it offers a balance of performance and power efficiency. Ideal for data centers, cloud computing, and high-performance computing applications, this processor provides exceptional multitasking capabilities and scalability.
$Quote
| Memory Types๏ผ | DDR4 1600/1866/2133/2400 |
|---|---|
| Code Name๏ผ | Broadwell |
| Max # of Memory Channels๏ผ | 4 |
| TDP๏ผ | 120 W |
| Hyper-Threading Support๏ผ | Yes |
