| Fans | 3 dual fan trays |
|---|---|
| Maximum number of Longest Prefix Match (LPM) routes** | 896,000 |
| Input voltage (High-Voltage DC [HVDC]) | C240 to C380V |
| RS-232 serial ports | 1 |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP+ |
| Typical power (AC) | 337W |
| CPU | 4 cores |
| MTBF | 352,590 hours |
| Airflow | Port-side intake and exhaust |
| Maximum number of multicast routes | 128,000 |
| Model | N9K-C9336C-FX2 |
| Input voltage (AC) | 100 to 240V |
| Power supplies (up to 2) | 750W AC, 1100W AC, 1100W DC, 1100W HVAC/HVDC |
| USB ports | 1 |
| System buffer | 40 MB |
| Ports | 36 x 40/100-Gbps QSFP28 ports |
| Supported speeds | 1/10/25/40/100-Gbps Ethernet, Breakout supported on all ports, 1-36: 100G, 2x50G NRZ, 40G native, 4×10/25G (10G w/QSA) 1G w/QSA except ports 1-6 and 33-36 |
| Input voltage (DC) | C40 to C72V |
| Maximum number of MAC address entries** | 256,000 |
| Maximum power (AC) | 719W |
| Brand | Cisco |
| Frequency (AC) | 50 to 60 Hz |
| SSD drive | 128 GB |
| Maximum number of IP host entries** | 896,000 |
| Input voltage (High-Voltage AC [HVAC]) | 100 to 277V |
| Physical dimensions (H x W x D) | 1.72 x 17.3 x 24.5 in. (4.4 x 43.9 x 62.3 cm) |
| System memory | 24 GB |

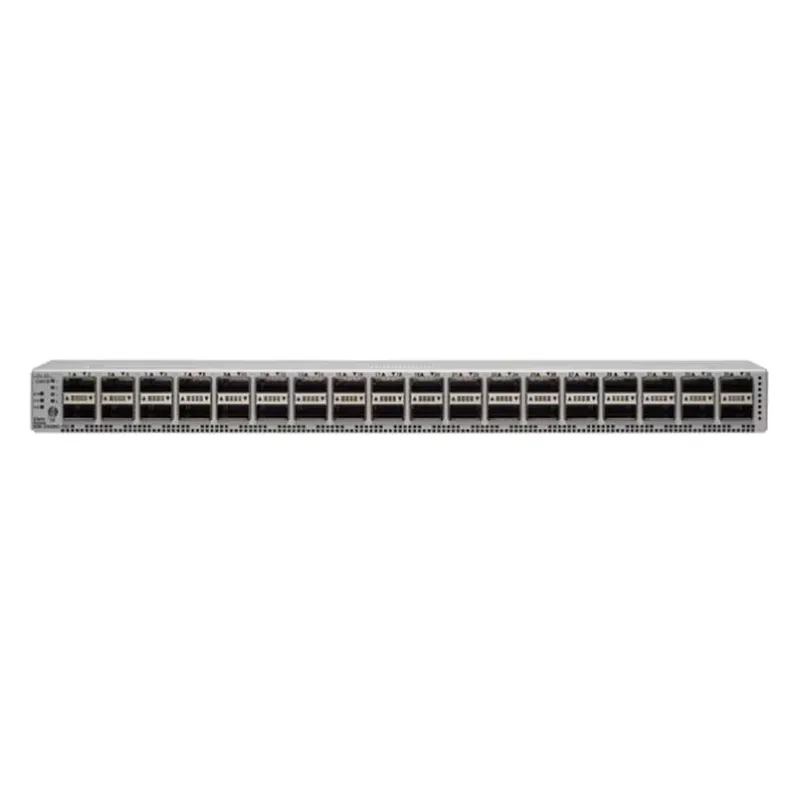

N9K-C9336C-FX2-E Cisco Nexus 9336C-FX2-E Ethernet Switch
The Cisco Nexus 9336C-FX2-E is a compact, high-performance Ethernet switch designed for data center deployments. Key features include 36 fixed 40/100-Gbps QSFP28 ports, low latency, and support for Cisco’s NX-OS operating system. Benefits include high-density 100GbE connectivity, improved network scalability, and reduced power consumption. Unique selling points are its compact 1RU form factor, wire-speed performance, and advanced telemetry capabilities for enhanced network visibility and monitoring.
$Quote
| Fans： | 3 dual fan trays |
|---|---|
| Maximum number of Longest Prefix Match (LPM) routes**： | 896,000 |
| Input voltage (High-Voltage DC [HVDC])： | C240 to C380V |
| RS-232 serial ports： | 1 |
| Management ports： | 2 ports: 1 RJ-45 and 1 SFP+ |
