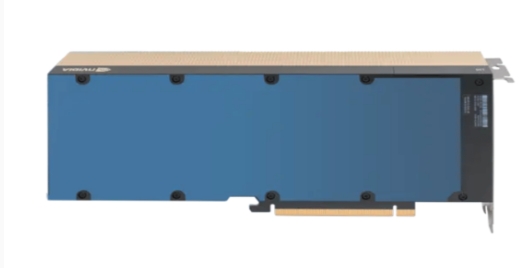

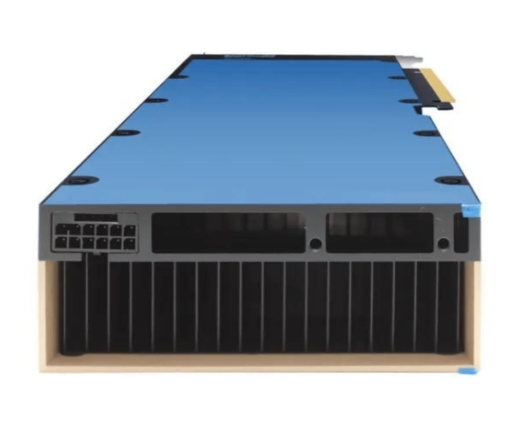

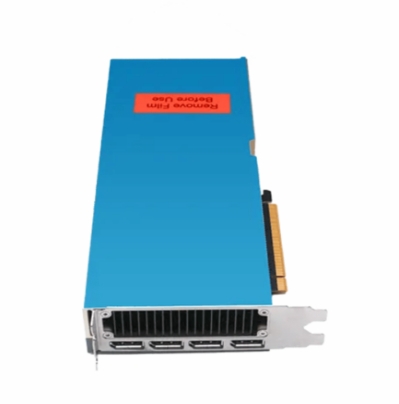

NVIDIA L20 48GB GPU

Brand：	nvidia
Products Status：	New
Application：	Workstation
ROPs：	128
Interface：	PCIe 4.0 x16

Brand：

nvidia

Products Status：

New

Application：

Workstation

ROPs：

128

Interface：

PCIe 4.0 x16

NVIDIA L20: Elevating Processing Power with Ada Lovelace Architecture

Embodying the cutting-edge Ada Lovelace architecture, the NVIDIA L20 stands as a technological marvel in the realm of GPUs. With 48 GB of GDDR6 memory featuring ECC and a formidable memory bandwidth of 864 GB/s, it ensures efficient data handling for demanding applications. The tensor cores, including INT8, FPB, BF16, and FP16, contribute to the L20’s robust processing capabilities, reaching up to 59.8 TFLOPS for FP32 operations. With support for RT cores, Multi-Instance GPU (MIG), and a substantial 96 MB L2 Cache, the L20 is designed for versatility and optimal workload management. Its power-efficient design, consuming 275 W and housed in a 2-slot FHFL form factor, positions the L20 as a dynamic solution for various computing needs.

Nvidia L20 Enterprise 48GB

Specification	Details
GPU Architecture	NVIDIA Ada Lovelace
GPU Memory	48 GB GDDR6 with ECC
Memory Bandwidth	864 GB/s
Tensor Cores	INT8
	BF16
	TF32 Tensor Core*: 59.8 TFLOPS
FP32 Processing Power	59.8 TFLOPS
FP64 Processing Power	N/A
RT Core	Yes
MIG Support	Yes
L2 Cache	96 MB
Media Engine	3 NVENC (+AV1), 3 NVDEC, 4 NVJPEG
Power Consumption	275 W
Form Factor	2-slot FHFL
Interconnect	PCIe Gen4 x16 with a speed of 64 GB/s

Brand	nvidia
Products Status	New
Application	Workstation
ROPs	128
Interface	PCIe 4.0 x16
Memory Size	48GB
Bus Width	384bit
Cores	11776
Memory Type	GDDR6
Boost Clock	2520 MHz
