| Brand | nvidia |
|---|---|
| Products Status | New |
| Model | MMS4X00-NM-FLT |
| Transceiver Type | Twin port transceiver |
| Max. Data Rate | 800 Gbps |
| Ports | 2x NDR |
| Form Factor | OSFP |
| Connector Type | 2x MPO12 APC |
| Wavelength | 1310nm |
| Cable Type | Single-mode fiber (SMF) |
| Maximum Distance | Up to 500m |
| Housing Type | Flat top |
| Compliance | IEEE 802.3 |
| Temperature Range | 0 C to 70 C |
| Power Consumption | < 15W |
| Digital Diagnostics | Supported |
| MTBF | Over 2 million hours |
| Hot Pluggable | Yes |
| RoHS | Compliant |
| Applications | Data center interconnectionsHigh-performance computing networksTelecommunication networks |

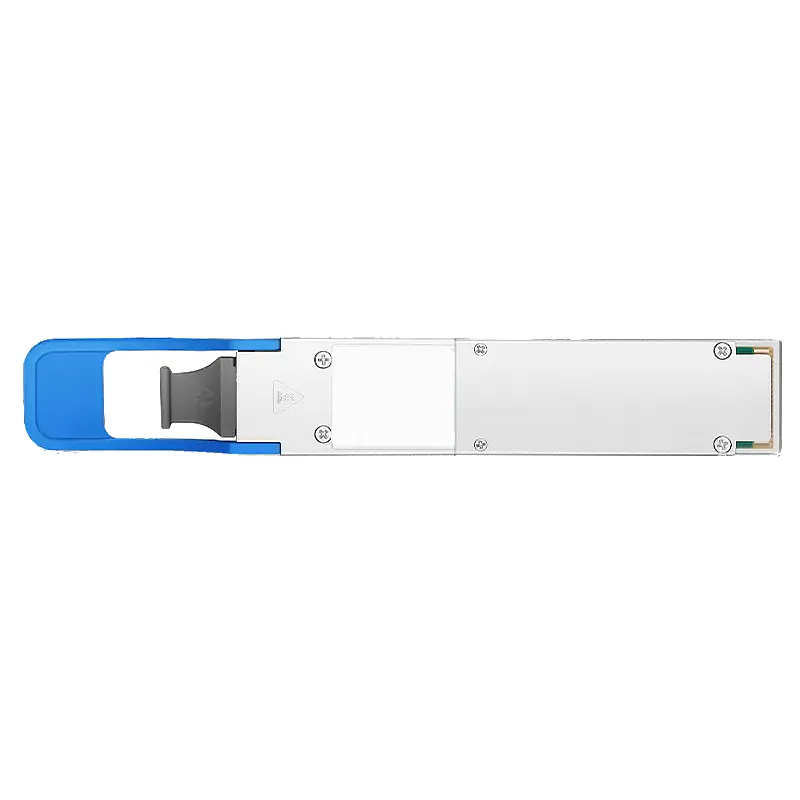

NVIDIA MMS4X00-NM-FLT Compatible 800G Twin-port OSFP 2x400G Flat Top PAM4 1310nm 500m DOM Dual MTP/MPO-12 SMF Optical Transceiver Module
NVIDIA MMS4X00-NM-FLT is an 800G OSFP optical transceiver module that offers high-speed data transfer with its twin-port design, supporting 2x400G flat top PAM4 transmission over 500m SMF. Key features include 1310nm wavelength, DOM capability, and dual MTP/MPO-12 connectivity. Benefits include high-density networking, improved scalability, and reduced latency. Unique selling points are its compatibility with NVIDIA systems and high-performance data center applications.
$Quote1 Piece (MOQ)
| Brand： | nvidia |
|---|---|
| Products Status： | New |
| Model： | MMS4X00-NM-FLT |
| Transceiver Type： | Twin port transceiver |
| Max. Data Rate： | 800 Gbps |
