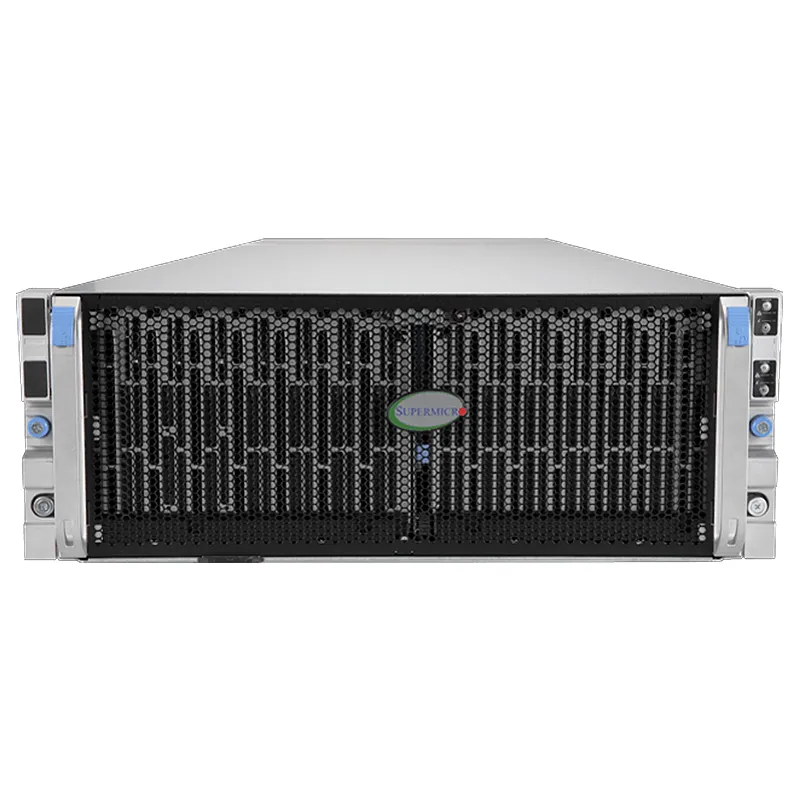

Storage SuperServer SSG-640SP-E1CR60 (Complete System Only

The Storage SuperServer SSG-640SP-E1CR60 is a high-density storage server designed for data-intensive applications. Key features include 60 drive bays, supporting up to 60 hot-swappable SAS/SATA drives, and a scalable architecture for flexible storage expansion. Powered by a single Intel Xeon Scalable processor, it delivers robust performance and efficient data processing. The system is optimized for storage-heavy workloads, offering high capacity, reliability, and flexibility, making it ideal for data centers, cloud storage, and big data analytics. Its compact 4U chassis and complete system configuration simplify deployment and reduce infrastructure costs.

$Quote

Note：	Supports 120W - 205W TDP CPUs (Air Cooled)
Network Connectivity：	2x 10GbE BaseT with X550
Memory：	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
IPMI：	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Core Count：	Up to 36C/72T; Up to 54MB Cache per CPU

Overview
Specs

Dual socket 3rd Gen Intel Xeon Scalable processors, up to 72 Cores
16 ECC DDR4-3200: LRDIMM/RDIMM
3 x PCIe 4.0 x16 HHHL PCIe slots
60 3.5″/2.5″ Hot-swap SAS3/SATA3 drives, 2x Fixed slim SATA SSD, 2x NVMe M.2 (form factor: 2280 and 22110)
6x 8cm hot-swap counter-rotate redundant PWM cooling fans
2000W Redundant Power Supplies Titanium Level (96%)
- Drive Controller support via Broadcom 3916 or 3616
- Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN

Note	Supports 120W – 205W TDP CPUs (Air Cooled)
Network Connectivity	2x 10GbE BaseT with X550
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Core Count	Up to 36C/72T; Up to 54MB Cache per CPU
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors
Width	17.6"
Weight	Net Weight: 118 lbs (53.5 kg) Gross Weight: 170.5 lbs (77.3 kg)
Motherboard	Super X12DSC-6
Package	29.92" (H) x 31.89" (W) x 44.88" (D)
Form Factors	4U
Product SKUs	SuperServer SSG-640SP-E1CR60 (Black)
Chipset	Intel C621A
Chassis Model	CSV-947STS-R2K05P
Depth	34.1"
Height	7"
Chassis Form Factor	4U Rackmount
