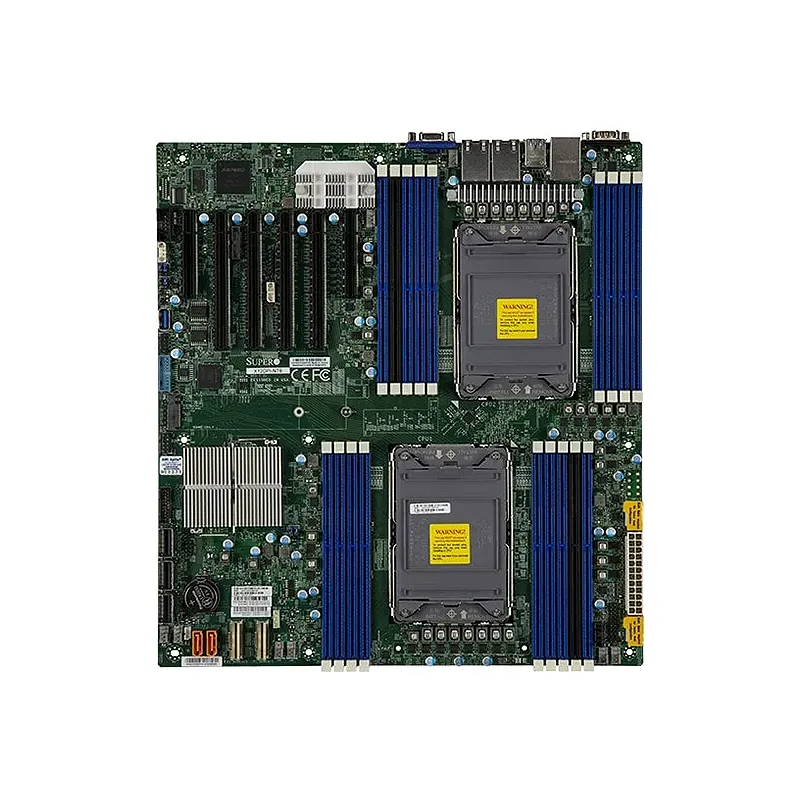

Supermicro MBD-X12DPi-N6

TPM：	1 TPM Header
Network Controllers：	Dual LAN with Intel i350 Gigabit Ethernet Controller
M.2：	M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key
Chipset：	Intel C621A
DIMM Sizes：	LRDIMM: 256GBRDIMM: 256GB

TPM：

1 TPM Header

Network Controllers：

Dual LAN with Intel i350 Gigabit Ethernet Controller

M.2：

M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key

Chipset：

Intel C621A

DIMM Sizes：

LRDIMM: 256GBRDIMM: 256GB

TPM	1 TPM Header
Network Controllers	Dual LAN with Intel i350 Gigabit Ethernet Controller
M.2	M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key
Chipset	Intel C621A
DIMM Sizes	LRDIMM: 256GBRDIMM: 256GB
BIOS Type	AMI UEFI
LAN	2 RJ45 Gigabit Ethernet LAN ports
Video Output	1 front panel) port(s), 2 VGA (1 rear bezel
Dimension	12" x 13" (30.48cm x 33.02cm)
PCIe	2 PCIe 4.0 x8, 4 PCIe 4.0 x16
USB	2 USB 2.0 port(s) (2 via header)7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
Form Factor	E-ATX
Memory Type	3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
Application	Server
IPMI	ASPEED AST2600 BMC
Memory Voltage	1.2V
CPU	3 UPI up to 11.2 GT/s, 3rd Gen Intel Xeon Scalable processorsDual Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Hardware	Trusted Platform Module (TPM) 2.0
Serial Port	2 COM Port(s) (1 header; 1 rear)
SATA	14 SATA3 (6Gbps) port(s)
Memory Capacity	18 DIMM slotsUp to 4TB Intel Optane Persistent Memory 200 Series, DDR4-3200MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-3200MT/sP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only., DDR4-3200MT/sUp to 4TB 3DS ECC LRDIMM
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
Core	Up to 40 cores
