| Brand | Supermicro |
|---|---|
| Application | Server |
| Form Factor | E-ATX |
| Chipset | Intel C741 |
| Products Status | New |
| Socket | LGA-4677 |
| USB | 3 USB 2 port(s) (2 via header; 1 Type A)6 USB 3 port(s) (2 via header; 4 rear) |
| BIOS Type | AMI 32MB AMI UEFI |
| Memory Capacity | 16 DIMM slotsUp to 4TB 3DS ECC RDIMM, DDR5-5600MT/s |
| Memory Type | 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) |
| Memory Voltage | 1.1V |
| DIMM Sizes | 256GBRDIMM: Up to 256GB, 96(XCC Only)GB, 128GB, 16GB, 32GB, 64GB |
| CPU | 5th Gen Intel XeonDual Socket V0 (LGA-4677) supported, CPU TDP supports Up to 350W TDP |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| SATA | 8 SATA3 (6Gbps) port(s)2 SATA3 (6Gbps) port(s) |
| Dimension | 12.1" x 13.05" (30.74cm x 33.15cm) |
| Network Controllers | Dual LANDual LAN with Broadcom BCM57416 10GBase-T |
| M.2 | M.2 Interface: 2 PCIe 4.0 x2Form Factor: 2280/22110Key: M-Key |
| IPMI | ASPEED AST2600 BMC |
| PCIe | 4 PCIe 5.0 x16, 2 PCIe 5.0 x8 |
| TPM | 1 TPM Header |
| BIOS Features | ACPI 6.4SMBIOS 2.8/3.5UEFI 2.8APlug and Play (PnP)PCI FW 3.2 |
| Cores | Up to 64 Cores |
| Video Output | 1 VGA D-Sub Connector port(s) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |

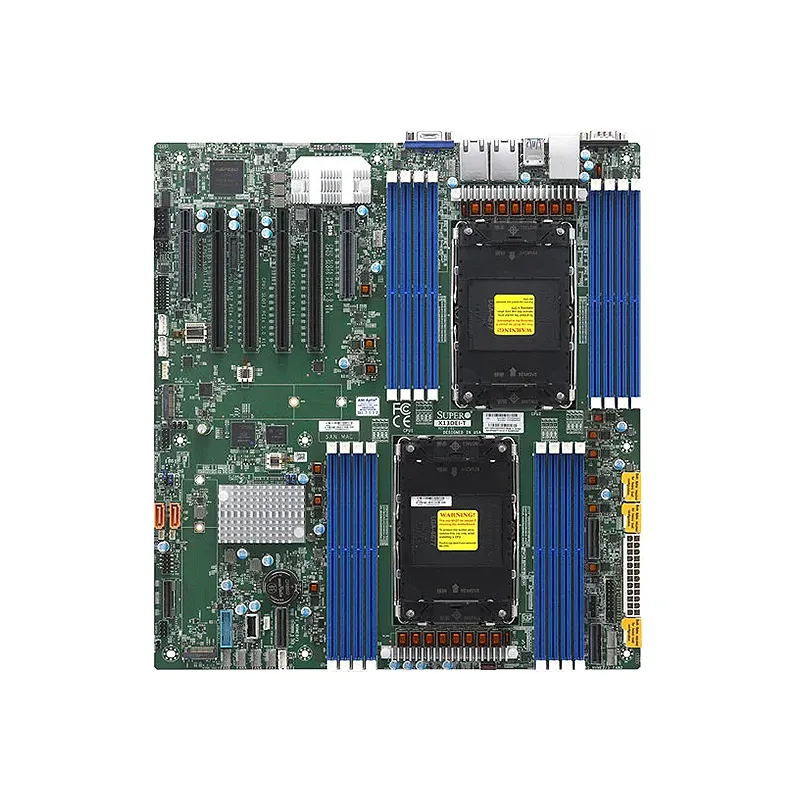

Supermicro MBD-X13DEI-B
The Supermicro MBD-X13DEI-B motherboard is designed for demanding data center applications, featuring a scalable Intel Xeon 4th Gen processor, PCIe 5.0, DDR5 memory, and advanced management capabilities. Key benefits include enhanced performance, improved security, and optimized power efficiency. Unique selling points include its modular design, high-density storage options, and comprehensive manageability features, making it ideal for cloud, HPC, and AI workloads.
$Quote5 pcs (MOQ)
