| Brand | Supermicro |
|---|---|
| Application | Server |
| Form Factor | Micro-ATX |
| Chipset | Intel C262 |
| Products Status | New |
| Socket | LGA-1700 |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) |
| BIOS Type | AMI 32MB AMI UEFI |
| Memory Capacity | 4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s |
| Memory Type | 4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC) |
| Memory Voltage | 1.1V |
| DIMM Sizes | 16GB, 32GB, 8GB |
| CPU | CPU TDP supports Up to 95W TDP, Intel Xeon E-2400/Pentium* ProcessorSingle Socket Socket V0 (LGA-1700) supported |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| SATA | 8 SATA3 (6Gbps) port(s) |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Network Controllers | Dual LAN with 1GbE with Intel I210 |
| M.2 | M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key |
| IPMI | ASPEED AST2600 BMC |
| PCIe | 1 PCIe 5.0 x8, 1 PCIe 5.0 x8 (in x16 slot), 2 PCIe 4.0 x4 (in x8 slot) |
| TPM | 1 TPM Header |
| BIOS Features | ACPI 6.4SMBIOS 3.5UEFI 2.8Plug and Play (PnP)PCI FW 3.3 |
| Cores | Up to 8 cores |
| Video Output | 1 VGA D-Sub Connector port(s) |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| Hardware | Trusted Platform Module (TPM) 2.0 |

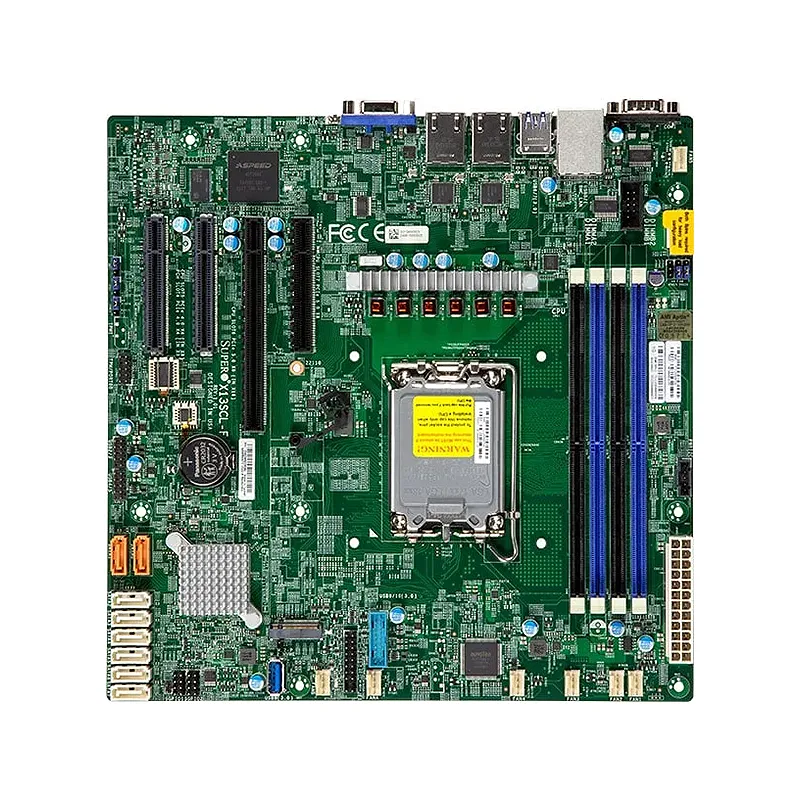

Supermicro MBD-X13SCL-F-B
The Supermicro MBD-X13SCL-F-B motherboard is designed for high-performance computing, featuring Intel’s 4th Gen Xeon Scalable processors, DDR5 memory, and PCIe 5.0. Key features include 4x DDR5 DIMM slots, 2x PCIe 5.0 x16 slots, and 2x 10GBase-T LAN ports. It offers improved performance, scalability, and security for data centers, cloud computing, and AI applications. Benefits include increased density, reduced latency, and enhanced manageability. Unique selling points include Supermicro’s optimized design for efficient cooling and its advanced management capabilities through IPMI.
$Quote5 pcs (MOQ)
