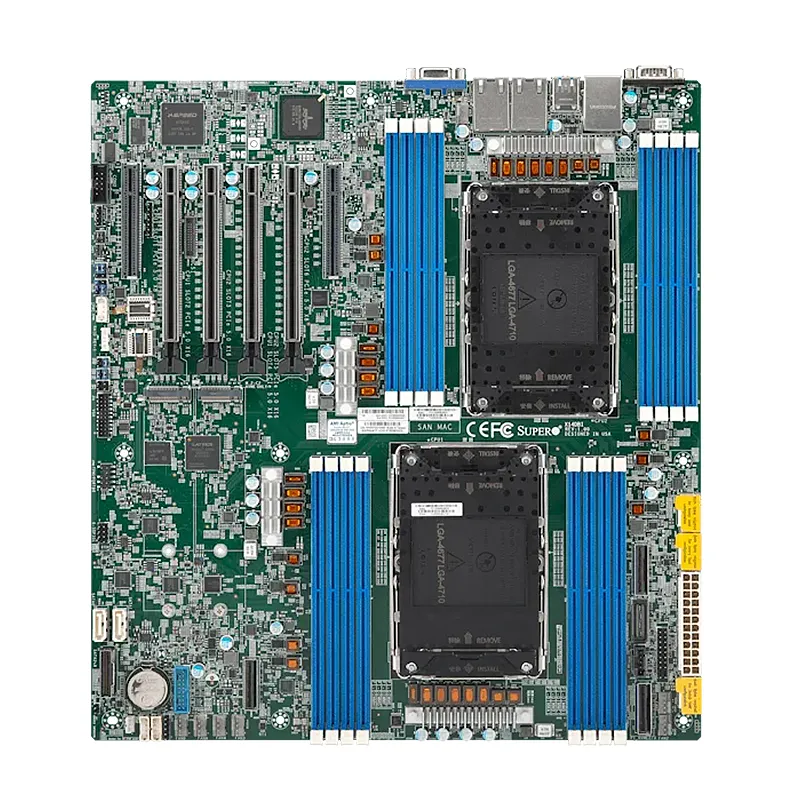

Supermicro MBD-X14DBI-B

Brand：

Supermicro

Application：

Server

Form Factor：

E-ATX

Chipset：

System on Chip

Products Status：

New

Brand	Supermicro
Application	Server
Form Factor	E-ATX
Chipset	System on Chip
Products Status	New
Socket	LGA-4189
USB	6 USB 3.1 Gen1 port(s) (2 via header; 4 rear)
BIOS Type	AMI 64MB AMI UEFI
Memory Capacity	16 DIMM slotsUp to 4TB ECC Registered RDIMM, DDR5-6400MT/s
Memory Type	6400 MT/s ECC DDR5 RDIMM Up to 256GB of memory with speeds of up to 6400 MT/s(1DPC)
Memory Voltage	1.1V
DIMM Sizes	256GBRDIMM: 16GB, 128GB, 16GB, 24GB, 256GB, 32GB, 48GB, 64GB, 96GB
CPU	3 UPI up to 24 GT/s, CPU TDP supports Up to 350W TDP, Dual Socket E2 (LGA-4710) supported
Error Detection	Corrects single-bit errorsDetects double-bit errors (using ECC memory)
SATA	10 SATA3 port(s)
Dimension	12.1" x 13.05" (30.74cm x 33.15cm)
Network Controllers	Dual LAN with Broadcom BCM5720 1GBase-TSingle LAN with Realtek RTL8211F PHY
M.2	M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1Form Factor: 2280/22110/25110Key: M-Key
IPMI	ASPEED AST2600 BMC
PCIe	4 PCIe 5.0 x16, 2 PCIe 5.0 x8
TPM	1 TPM Header
BIOS Features	ACPI 6.5SMBIOS 3.7 or laterUEFI 2.9
Cores	Up to 144 (E) cores
Video Output	1 VGA D-Sub Connector port(s)
Serial Port	2 COM Port(s) (1 rear; 1 header)
