Product SKUs

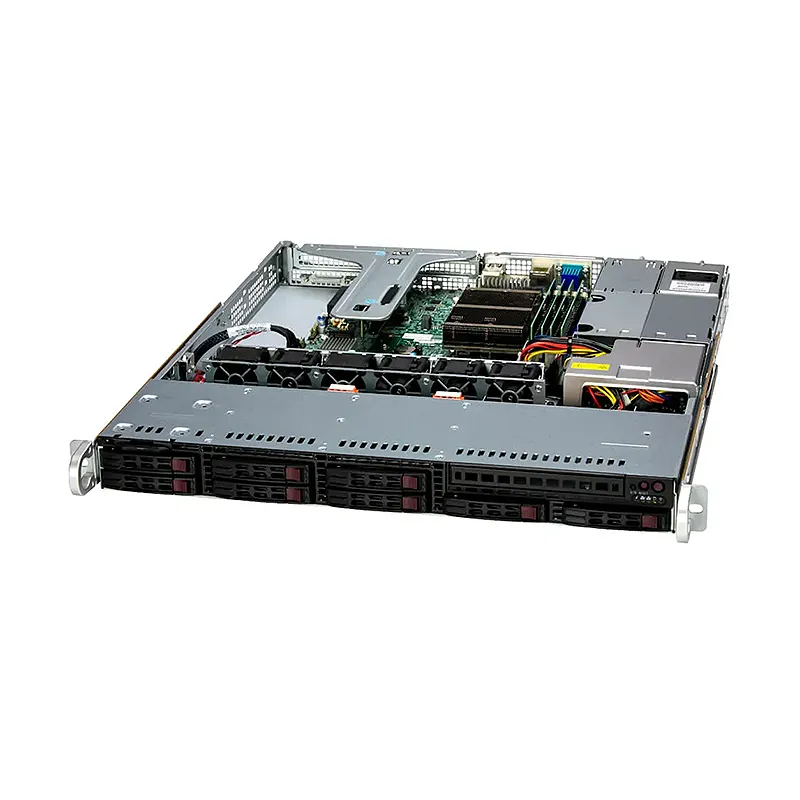

- SuperServerSYS-111R-M
Motherboard
- Super X13SCH-SYS
Processor
- CPU
Single processor(s)
Intel Xeon E-2400 series Processors and 12th Gen. Pentium Processors - Core Count
Up to 8C/16T; Up to 24MB Cache
System Memory
- Memory
Slot Count: 4 DIMM slots/2 Channels
Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM - Memory Voltage
1.1V
On-Board Devices
- SATA
SATA (6Gbps) ; RAID 0/1/5/10 support
- Chipset
Intel C266
- Network Connectivity
2 RJ45 1GbE with Intel I210
Input / Output
- LAN
2 RJ45 1 GbE LAN ports
1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) - USB
4 USB 2.0 ports(header)
2 USB 3.2 Gen1 Type-A ports(rear)
2 USB 2.0 Type-A ports(rear)
2 USB 3.2 Gen1 ports(Header)
1 USB 3.2 Gen1 Type-A port(Header) - Video
1 VGA port
- Serial
1 COM port(Rear)
1 COM port(Header) - TPM
1 TPM header
System BIOS
- BIOS Type
AMI 32MB SPI Flash EEPROM
Management
- Power configurations
ACPI/APM Power Management
Chassis
- Form Factor
1U Rackmount
- Model
CSE-113MFTS-0RCNBP-1P
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
19.98″ (507 mm)
- Package
8.5″ (H) x 24″ (W) x 29.5″ (D)
- Weight
Gross Weight: 30.4 lbs (13.8 kg)
Net Weight: 17.6 lbs (8 kg) - Available Color
Black
Front Panel
- LED
Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information - Buttons
Power On/Off
System Reset
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 1 PCIe 5.0 x8 FHHL slot 1 PCIe 5.0 x8 LP slot
Option A 1 PCIe 5.0 x16 FHHL slot
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ SAS*/SATA drive bays
(*SAS support may require additional storage controller and/or cables) - M.2
2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
System Cooling
- Fans
2 AOC cooling Fan(s) (optional)
4 middle cooling PWM 40x40x28mm Fan(s)
Power Supply
- 1x 600W
1x 600W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)
54.5 x 40.25 x 220 mm
Input
600W: 100-127Vac / 50-60Hz
600W: 200-240Vdc / 50-60Hz
600W: 200-240Vac / 50-60Hz
+12V
Max: 50A / Min: 0A (100Vac-127Vac)
Max: 50A / Min: 0A (200Vdc-240Vdc)
Max: 50A / Min: 0A (200Vac-240Vac)
5V SB
Max: 4A / Min: 0A
Output Type
Backplanes (gold finger)
| Brand | Supermicro |
|---|---|
| Products Status | New |
| Applications | Database Processing and Storage, Encoding Decoding, Web/Hosting Application |
| Max GPU | 1 |
| CPU Type | Intel Xeon E-2400 series Processors and 12th Gen. Pentium Processors |
| Total PCI-E Slots | 2 |
| Drives | 8 |
| Drive Form Factors | 2.5" |
| Form Factor | 1U |
| Generation | X13 |
| Interface | SAS (Optional), SATA (Native) |
| SATA | SATA (6Gbps) ; RAID 0/1/5/10 support |
| LED | Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information |
| Serial | 1 COM port(Rear)1 COM port(Header) |
| Network Connectivity | 2 RJ45 1GbE with Intel I210View AOC Options |
| LAN | 2 RJ45 1 GbE LAN ports1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1) |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Package | 8.5" (H) x 24" (W) x 29.5" (D) |
| Depth | 19.98" (507 mm) |
| Fans | 2 AOC cooling Fan(s) (optional)4 middle cooling PWM 40x40x28mm Fan(s) |
| Height | 1.7" (43 mm) |
| Buttons | Power On/OffSystem ResetUID button |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110) |
| Memory | Slot Count: 4 DIMM slots/2 ChannelsMax Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMMView Memory Options |
| Width | 17.2" (437 mm) |
| Video | 1 VGA port |
| Core Count | Up to 8C/16T; Up to 24MB Cache |
| Note | Supports up to 95W TDP CPUs (Air Cooled) |
| Weight | Gross Weight: 30.4 lbs (13.8 kg)Net Weight: 17.6 lbs (8 kg) |
| Drive Bays Configuration | Default: Total 8 bays(*SAS support may require additional storage controller and/or cables) |
| USB | 4 USB 2.0 ports(header)2 USB 3.2 Gen1 Type-A ports(rear)2 USB 2.0 Type-A ports(rear)2 USB 3.2 Gen1 ports(Header)1 USB 3.2 Gen1 Type-A port(Header) |
| Available Color | Black |
| PCI-Express (PCIe) Configuration | DefaultOption A |
| TPM | 1 TPM Header |
| CPU | Single processor(s)Intel Xeon E-2400 series Processors and 12th Gen. Pentium Processors |
| Chipset | Intel C266 |
| Memory Voltage | 1.1V |
